WSGI

Reference documentation for the WSGI framework implemented in DMS.

Protocols

Client

  • Clients use JSON encoding to send their requests to the server.

  • Client XMLHttpRequests must adhere to the framework format specification.

A message consists of two parts: an enveloppe (header) and a content (body). The header has pre-defined (key, value) pairs interpreted by the framework. The body can be any content relevant to the application.

The enveloppe fields serialize and compress are used to indicate how the client expects its response.

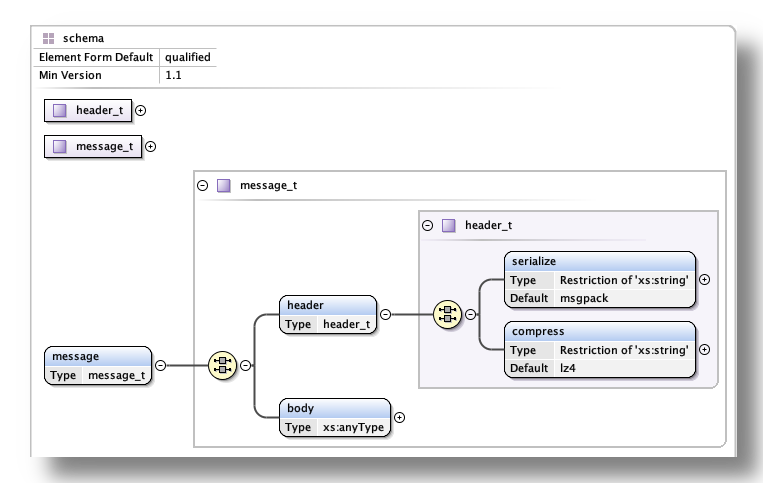

../_images/dms-wsgi-message_schema.png

Specification:

<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
  xmlns:vc="http://www.w3.org/2007/XMLSchema-versioning" elementFormDefault="qualified"
  vc:minVersion="1.1">
  <xs:complexType name="header_t">
    <xs:all>
      <xs:element default="msgpack" name="serialize">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="msgpack"/>
            <xs:enumeration value="json"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element default="lz4" name="compress">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="lz4"/>
            <xs:enumeration value="gzip"/>
            <xs:enumeration value=""/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
    </xs:all>
  </xs:complexType>
  <xs:complexType name="message_t">
    <xs:all>
      <xs:element name="header" type="header_t"/>
      <xs:element name="body" type="xs:anyType"/>
    </xs:all>
  </xs:complexType>
  <xs:element name="message" type="message_t"/>
</xs:schema>

dms-wsgi-message.xsd

Example:

{
  "header": {
    "compress": "lz4",
    "serialize": "msgpack"
  },
  "body": {
    "time_range": [
      "2020-04-14 07:00",
      "2020-04-14 14:00"
    ],
    "xargs": {
      "parallel": false,
      "reduce": false,
      "lttb": ["fixed" , 1000] # "fixed" or "scaled",
      "kind": "time",
      "decimate": 60
    }
  }
}

  • DMS wrappers

    • Javascript <wsgi-client> webcomponent

    • Python

Server

The DMS server is consists of a web server with the following capabilties

  • serving http content to web browser clients using Nginx (1).

The pages are built using the Google Polymer framework to create custom webcomponents (2).

  • serving XmlHttpRequest using uWSGI

  • Response to clients adhere to the framework format specification.

A response consists of a status code. error message, and response content. The response is serialized and compressed using parameters defined in the client header request.

  1. Originally used Apache.

  2. We are planning to migrate over more popular frameworks e.g., React or Angular.

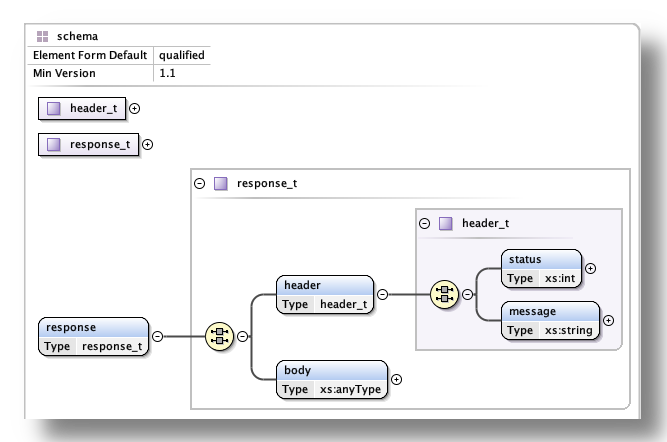

../_images/dms-wsgi-response_schema.png

Specification:

<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
  xmlns:vc="http://www.w3.org/2007/XMLSchema-versioning" elementFormDefault="qualified"
  vc:minVersion="1.1">
  <xs:complexType name="header_t">
    <xs:all>
      <xs:element name="status" type="xs:int"> </xs:element>
      <xs:element name="message" type="xs:string"> </xs:element>
    </xs:all>
  </xs:complexType>
  <xs:complexType name="response_t">
    <xs:all>
      <xs:element name="header" type="header_t"/>
      <xs:element name="body" type="xs:anyType"/>
    </xs:all>
  </xs:complexType>
  <xs:element name="response" type="response_t"/>
</xs:schema>

dms-wsgi-response.xsd

Examples:

on-success

{
  "header": {
    "status": 0,
    "message": ""
  },
  "body": {
    "foo": "bar"
  }
}

on-error

{
  "header": {
    "status": -1,
    "message": "An error occured."
  },
  "body": null
}
